Standard Bar Hooks
Recommended End Hooks All Grades of Steel
D = Finished bend diameter
| 180o hooks ft-in | 90o hooks ft-in | |||
| Bar Size | D in. | A or G | J | A or G |
|
#3 |
0-02 ¼ |
0-05 |
0-03 |
0-06 |
| #4 | 0-03 | 0-06 | 0-04 | 0-08 |
| #5 | 0-03 ¾ | 0-07 | 0-05 | 0-10 |
| #6 | 0-04 ½ | 0-08 | 0-06 | 1-00 |
| #7 | 0-05 ¼ | 0-10 | 0-07 | 1-02 |
| #8 | 0-06 | 0-11 | 0-08 | 1-04 |
| #9 | 0-09 ½ | 1-03 | 0-11 ¾ | 1-07 |
| #10 | 0-10 ¾ | 1-05 | 1-01 ¼ | 1-10 |
| #11 | 1-00 | 1-07 | 1-00 ¾ | 2-00 |
| #14 | 1-06 ¼ | 2-03 | 1-09 ¾ | 2-07 |
| #18 | 2-00 | 3-00 | 2-04 ½ | 3-05 |
Stirrup (Ties Similar)
Stirrup/Tie Hook Dimensions
All Grades of Steel
| 90o Hook ft-in | 135o Hook in. | |||
| Bar Size | D in. | Hook A or G | Hook A or G | H (Approximate) |
| #3 | 0-02 | 0-04 | 0-04 | 0-02 ½ |
| #4 | 0-02 ½ | 0-04 ½ | 0-04 ½ | 0-03 |
| #5 | 0-03 ¼ | 0-06 | 0-05 ½ | 0-03 ¾ |
| #6 | 0-04 ½ | 1-00 | 0-08 | 0-04 ½ |
| #7 | 0-05 ¼ | 1-02 | 0-09 | 0-05 ¼ |
| #8 | 0-06 | 1-04 | 0-10 ½ | 0-06 |

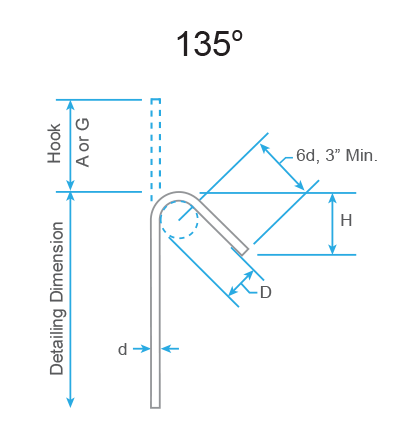

135o Seismic Stirrup/Tie Hook Dimensions
All Grades of Steel
| 135o Hook in. | |||
| Bar Size | D in. | Hook A or G | H (Approximate) |
| #3 | 0-01 ½ | 0-04 ¼ | 0-03 |
| #4 | 0-02 | 0-04 ½ | 0-03 |
| #5 | 0-02 ½ | 0-05 ½ | 0-03 ¾ |
| #6 | 0-04 ½ | 0-08 | 0-04 ½ |
| #7 | 0-05 ¼ | 0-09 | 0-05 ¼ |
| #8 | 0-06 | 0-10 ½ | 0-06 |
